Marina Bay Sands, Singapore’s iconic architectural masterpiece, stands as a testament to modern engineering and luxury hospitality. This comprehensive guide details the hotel’s unique layout and floor plan, helping visitors navigate this extraordinary integrated resort.

Architectural Overview

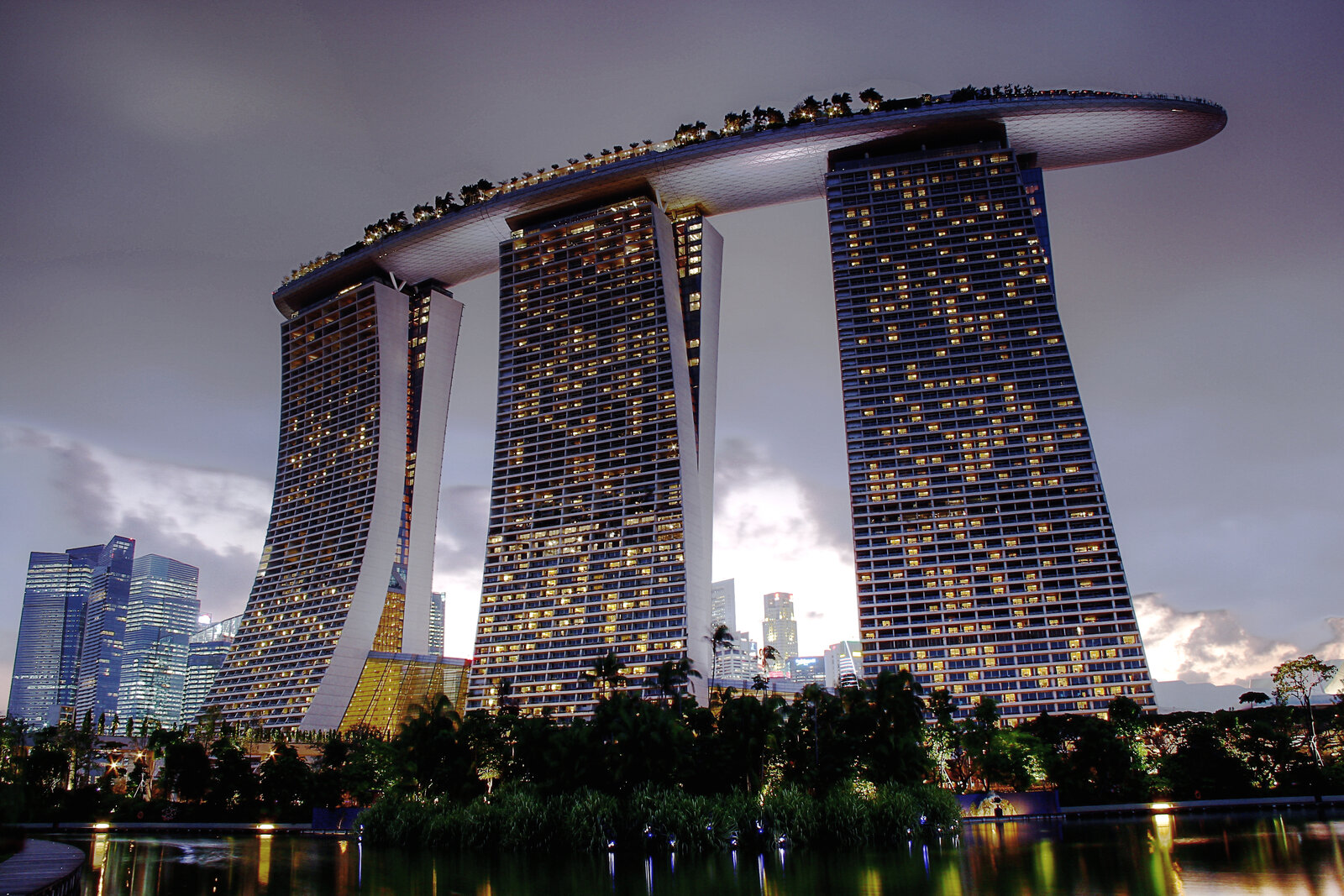

Designed by renowned architect Moshe Safdie, Marina Bay Sands features three 57-story towers inspired by a deck of cards, connected by a spectacular SkyPark. The complex spans over 120,000 square meters of integrated resort space, combining luxury accommodation, entertainment, and business facilities.

Tower Structure and Layout

Key features of the three towers:
• Height: 195 meters (57 stories each)
• Total rooms: 2,561
• Unique design: No two floors are identical due to the tilted, curved structure
• Construction depth: Deep piling system on reclaimed land

The SkyPark

The crown jewel of Marina Bay Sands is its SkyPark, an engineering marvel:

• Length: 340 meters (longer than the Eiffel Tower laid flat)
• Cantilever: 67 meters outward from the towers
• Total weight: Over 7,000 tons
• Total area: 9,941 square meters
• Height: Located on the 57th floor

SkyPark Facilities

1. Infinity Pool:
• Length: 150 meters
• Capacity: 1.42 million liters
• Height: 200 meters above ground
• Access: Exclusive to hotel guests

2. Observation Areas:
• Observation Deck: 865 square meters (500-person capacity)
• South Garden: 448 square meters (200-person capacity)
• North Garden: 544 square meters (250-person capacity)

Convention and Exhibition Spaces

Level 1 (Ground Floor)

• Exhibition Hall A: 4,240 square meters
• Exhibition Hall B: 4,140 square meters
• Total area: 14,560 square meters
• Ceiling height: 9.45 meters
• Column spacing: 33×18 meters

Basement Level 2

• Hall D: 3,110 square meters
• Hall E: 4,840 square meters
• Hall F: 6,780 square meters
• Feature: Movable walls for flexible configurations

Levels 3 & 4

• Multiple meeting rooms (including Peony and Orchid)
• Capacity range: 48-978 people
• Pre-function foyers: 480-820 square meters
• Garden Walks: 490-560 square meters

Integrated Resort Facilities

Retail and Entertainment

• The Shoppes: 170+ luxury brands
• Theater: 2,100-seat capacity
• ArtScience Museum
• Multiple dining venues
• Casino

Sustainability Features

The building incorporates numerous eco-friendly elements:
• Rainwater harvesting systems
• Motion-sensor lighting
• 5,000+ environmental sensors
• Solar power (particularly for ArtScience Museum)
• Waste digesters
• LEED certification

Navigation Tips

1. Tower Access:
• Each tower has dedicated elevators
• Clear signage system throughout
• Connected via ground-level walkways

2. SkyPark Access:
• Dedicated elevator system
• Security checkpoints for observation deck
• Separate access for hotel guests to infinity pool

3. Convention Center Navigation:
• Color-coded zones
• Digital wayfinding systems
• Information desks on each level

Special Engineering Features

• Seismic joints in SkyPark for sway resistance
• Advanced structural support system
• Integrated climate control
• State-of-the-art security systems

Conclusion

Marina Bay Sands represents a pinnacle of modern architectural achievement, combining function with stunning design. Whether you’re staying as a guest, attending a convention, or visiting for leisure, understanding its layout enhances the experience of this world-class destination.

Note: For specific room locations and detailed floor plans, please consult the hotel’s guest services or convention planning team.
